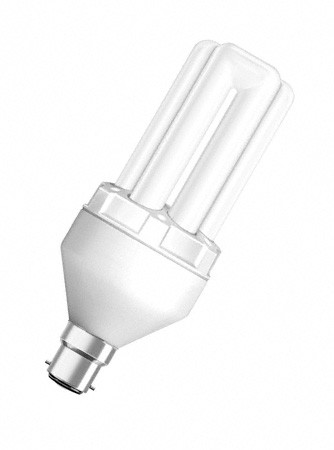

Osram DSST STICK 11W/825 B22d

Modern top energy saving lamps in the traditional form

OSRAM DULUX SUPERSTAR in the original energy saving lamp shape have an average life of up to 15,000 h They are available with E14 and E27 and in many power levels .

        NEW : Warm Comfort Light - warm energy-saving light similar to a light bulb

        Extremely fast lumen run-up thanks to new patented Quick Light Technology

        Average life is up to 15,000 hours (switching cycle : 165 min on , 60 min off)

        for OSRAM DULUX SUPERSTAR , equivalent to 15 years at about 2.7 hours per day

        Up to 500,000 switching cycles ( 60 s on , 180 s off)

    Excellent color rendering


OSRAM DULUX SUPERSTAR STICK are not suitable for use with external dimmers or electronic switches .

Use only in enclosed and ventilated luminaires for outdoor use.
application data
dimmable No

Norms & standards
EEI - Energy efficiency class A
Cleaning instruction in case of Zerbrec What to do if a lamp containing mercury breaks?

General Description
Mercury-free No
Rated lamp mercury content 1.9 mg
Base (standard designation) B22d
recycling Yes

Technical - Electrical Data
Rated number of switching cycles 500000
Construction wattage 11 W
Rated power factor λ 0.60
Power consumption of the conventional incandescent lamp 54 W
Rated power 11 W
Nominal voltage 220-240 V
Operating frequency 50 ... 60 Hz
Rated current 90 mA
Construction current 90 mA

Technical - Geometries
Overall length 120.00 mm
Diameter 45 mm
Tube diameter T3
Length 120.00 mm
Construction length 120.00 mm

Technical - Lifespan
Rated lamp life time 15000 h
Rated life of 15000 hours

Technical - Light Technical Data
Rated color rendering index . Ra > 80
Nominal luminous flux 640 lm
Rated warm-up time (60 %) 20 s
Lumen maintenance factor at the end of nom.life 0.65
Rated starting time 1.0 s
Rated luminous flux 640 lm
Luminous flux 640 lm
Light color 825
Rated color temperature 2500 K
Color rendering index Ra 80 ... 89
Light color as per EN 12464-1 Warm Comfort Light
Color temperature of 2500 K
